Designed to seal openings in new and existing raised floor
cutouts to block bypass airflow and maximize cooling
system efficiency.
For new or existing floor tiles.
Overall size: 5.61" x 1.90"
Grommet size: 4.0" diameter
Usable cable area: 9.6 sq in.
Use Data Clean Colored Rounds to better organize your cable plant with color coded cable cutouts - or just add some color to your computer room. NOTE: THIS ITEM IS SPECIAL ORDER AND CAN TAKE UP TO 7 DAYS TO SHIP.
Applications

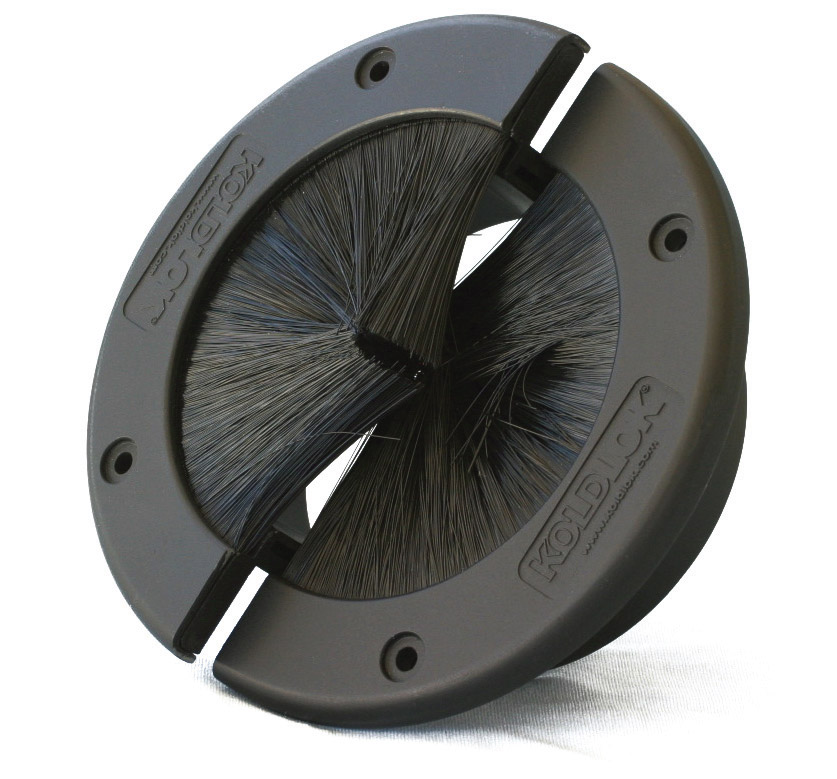

Designed to seal openings in new and existing raised floor cutouts to block bypass airflow and maximize cooling system efficiency. The KoldLok Round 4” Grommet boasts a revolutionary sealing technology, which greatly reduces costly bypass airflow, increasing useable cooling unit capacity, and ensuring maximized efficiency from HVAC equipment.
Features
- Split feature allows for installation or removal without disturbing cables
- Contains no loose or partially fastened parts, which can become separated or fall through the raised floor
- Superior Sealing: New, patented Hybrid Brush Technology (HBT) offers exceptional sealing and airflow management, unsurpassed by other leading brush products on the market today. Hybrid Brush Technology (HBT):
- Flexible and highly efficient sealing membrane
- Membrane supports bristles and limits leakage
- Multi-layered construction for increased sealing effectiveness
- Better overall sealing than traditional brush designs
- Maintenance Free: Seals around cables with no additional maintenance or monitoring required
- Longevity: Impact resistant and durable ABS frame and brush sealing surface can be used for years
Benefits
- Supports increasing cabinet density
- Reduces the need to purchase additional cooling units
- Improves IT equipment reliability and extends equipment life
- Increases static pressure under the raised floor
- Improves volume of conditioned air delivery through perforated tiles and floor grates
Specifications
Overall dimensions (diameter x height):
- 5.61" x 1.90", 143mm x 48mm
- Product height above floor: .40", 10mm
- Useable penetration area: 9.6sq in., 6194sq mm
- Satisfies NFPA 75 Section 5-4.4 requirement by self-dressing the raw metal edges of raised floor tile cable cutouts
