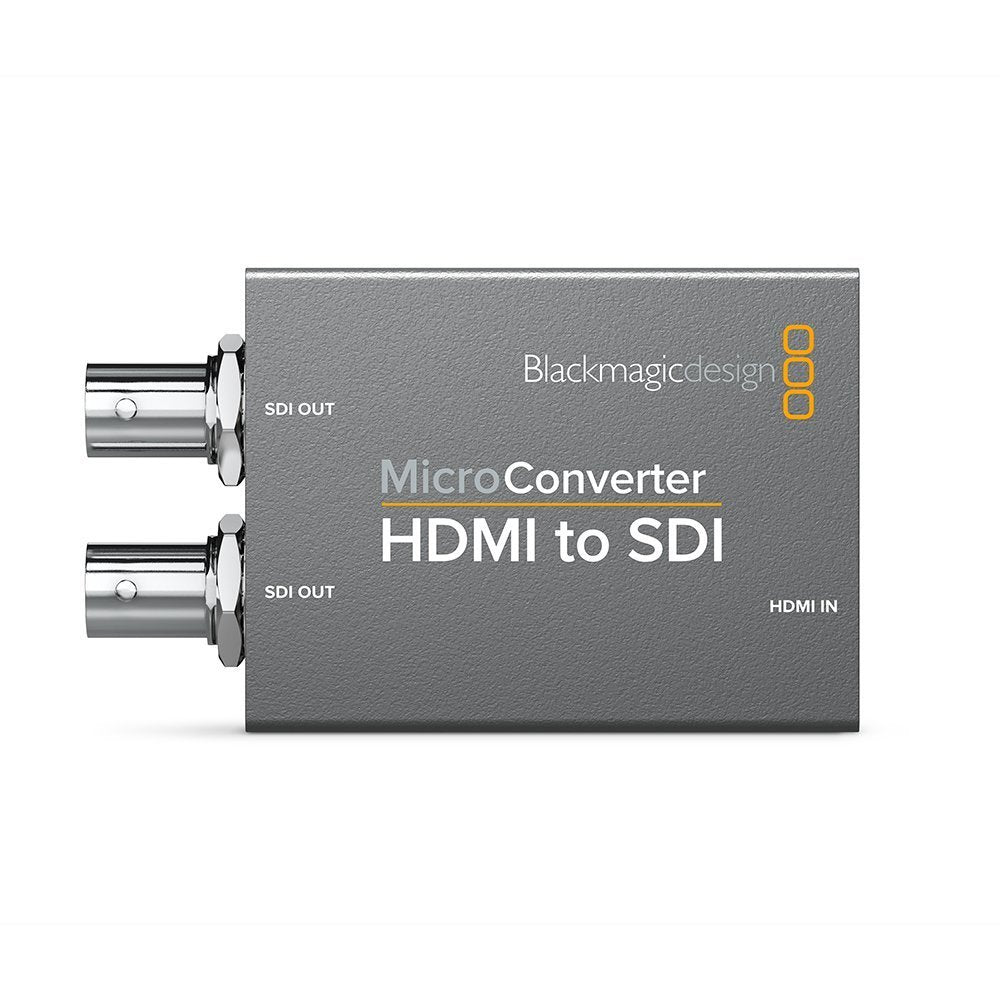

HDMI to SDI with Power Supply

HDMI to SDI with Power Supply

MFG PART#:HDMI-SDI-SCALER

Part Number:

Your Price:
$99.00 USD
$99.00 USD
Sale Sold out
Shipping calculated at checkout.
Web Price: $148.50
You Saved: $49.50

  • Features

    • Full size HDMI and 3G-SDI connections for working with all SD and HD formats up to 1080p60
    • Durable metal enclosure designed to be rugged enough to use anywhere
    • Professional Blackmagic Design broadcast quality 10-bit video processing
    • SDI re-clocking on 3G-SDI input to reduce SDI jitter and improve SDI eye pattern
    • Power via micro USB connection from devices such as laptop computers, phone chargers, and televisions, or via the included DC plug pack with external 110V - 240V AC power supply


  • Specifications

    • Connections
    • SDI Video Output: Automatically matches the SD, HD or 3G-SDI HDMI video input
    • HDMI: HDMI Type A in
    • Multi Rate Support: Auto detection of SD or HD
    • Updates, Configurations and Power: Micro USB
    • Reclocking: Yes

      Standards
    • SDI Format Support: 525i29.97 NTSC, 625i25 PAL
    • HD Format Support: 720p50, 59.94, 60, 1080p24, 25, 29.97, 30, 50, 59.94, 1080i50, 59.94, 60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
    • SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.
    • SDI Color Precision: 4:2:2
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
    • HDMI Format Support: 525i29.97 NTSC, 625i25 PAL, 720p50, 59.94, 60, 1080p24, 25, 29.97, 30, 50, 59.94, 60, 1080i50, 59.94, 60
    • HDMI Color Precision: 4:2:2
    • HDMI Color Space: YUV and RGB

      Power Requirements
    • Power Supply: +5V universal power supply with international socket adapters for all countries (Included)
    • Power Consumption: 2.0 Watts
    • Operational Voltage Range: 4.4 to 5.25V DC


  • Item Includes

    • Micro Converter HDMI to SDI
    • +5V universal power supply with international socket adapters
